UHMW Full Round Extruded Profiles for Conveyor Applications
UHMW full round profiles are open, snap-on extrusions designed to fit over round conveyor guide rods or rails. The rounded UHMW surface creates a durable, low-friction contact area wherever conveyed products may contact the guide system.
They are commonly used on conveyor and packaging equipment where bottles, cans, containers, cartons, and other products need to be guided while minimizing friction, wear, and surface marring.
Benefits of UHMW Full Round Profiles
- Provides a smooth, low-friction product-contact surface
- Helps reduce metal-to-product contact
- Helps minimize marring of bottles, cans, containers, and packages
- Offers excellent wear and impact resistance
- Self-lubricating in many conveyor applications
- Resistant to moisture, corrosion, and many chemicals
- Lightweight compared with many metal guide components
- Available in multiple standard profile sizes
- Available in several UHMW formulations for different operating conditions.
Available UHMW Materials
Depending on the profile, Slideways full round extrusions are available in several material formulations.
-
UHMW - General-purpose UHMW provides a durable, wear-resistant, and low-friction surface for many conveyor guide applications. It is self-lubricating and resistant to moisture, corrosion, and many chemicals.
-
Oil-Filled UHMW - Oil-filled UHMW provides additional lubricity and reduced friction for applications where lower sliding resistance is desired.
-
High-Temp UHMW - High-temperature UHMW is designed for elevated-temperature applications where standard UHMW may not provide sufficient temperature resistance.
-
Anti-Static UHMW - Anti-static UHMW helps reduce electrical charge buildup in applications where static electricity may be a concern.
-
Black Reprocessed UHMW - Black reprocessed UHMW provides an economical UHMW option for applications where reprocessed material is suitable.
Material selection should be based on conveyor speed, load, temperature, sanitation requirements, and the surrounding operating environment. Food-contact-compliant UHMW grades are available for applicable applications; verify the selected material formulation for specific regulatory requirements.
Common Applications
UHMW full round profiles are commonly used for:
- Conveyor side guide rails
- Round guide-rod covers
- Bottle and can conveyor guides
- Protective conveyor edging
- Packaging and automation equipment
- Beverage, bottling, and canning lines
- Food processing and packaging conveyors
- Pharmaceutical packaging equipment
- Distribution and material-handling conveyors
- Other applications requiring a rounded, low-friction guide surface.
How to Select the Correct Full Round Profile

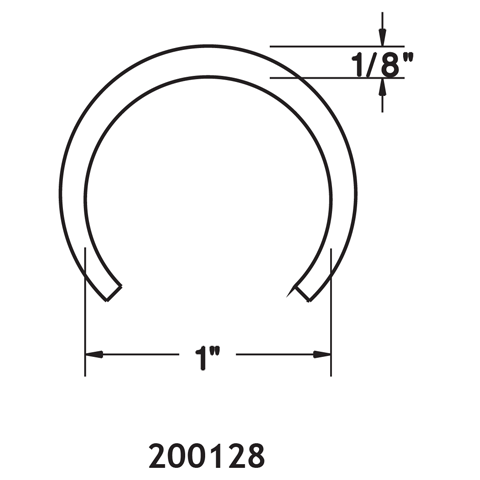

Use the dimensional drawing for each product to compare the profile with your existing conveyor rail or equipment design.
Before requesting a profile:
- Measure the existing round guide rod or rail.
- Compare the measurement with the dimensional drawing.
- Confirm the outside profile dimension and wall thickness.
- Verify the Slideways SKU.
- Select the UHMW formulation required for the operating environment.
- Enter the required quantity and submit the item for quote.
Standard extruded profiles are stocked in common lengths, with availability varying by profile and material.
If a standard full round profile does not match your equipment, contact Slideways to discuss other extruded profile or custom guide options.
Frequently Asked Questions
What is a UHMW full round profile?
A UHMW full round profile is an open extruded profile designed to fit over a round guide rod or rail. It creates a rounded UHMW contact surface for guiding products on conveyor and packaging equipment.
What are UHMW full round profiles used for?
They are commonly used as conveyor side guides, round rail covers, protective edging, and product-contact guides for bottles, cans, containers, and packaged goods.
How do I choose the correct profile size?
Start by measuring the round rod or rail the profile will cover. Compare that measurement with the dimensional drawing for each product, then verify the outside dimension, wall thickness, SKU, and material.
Which UHMW material should I choose?
The best material depends on the application's speed, friction, operating temperature, static requirements, sanitation needs, and surrounding environment. Slideways offers several UHMW formulations for different operating conditions.
