Slideways offers standard flat belt guides and guide inserts for timing belts, belt support, and guide rail applications. Made from wear-resistant UHMW materials, these guides provide a low-friction surface that helps support belt tracking, reduce wear, and promote smooth conveyor operation.
Available in plain or mounted configurations with multiple standard dimensions and material grades, these guides can be matched to your specific equipment requirements.
Product Types
-

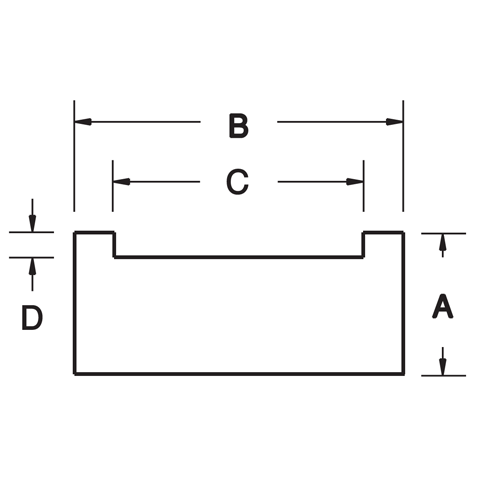

Flat Belt Guide for Timing Belts — Plain
- Plain flat belt guides provide a durable, low-friction surface for supporting and guiding timing belts. Select the required pitch × width from the available standard options.
- Plain guides are designed for installations where the equipment provides the mounting method.
-

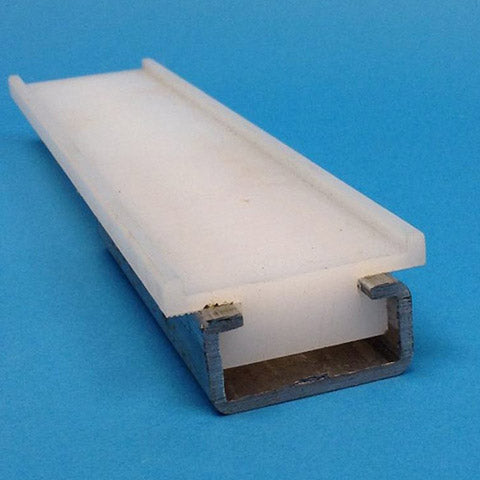

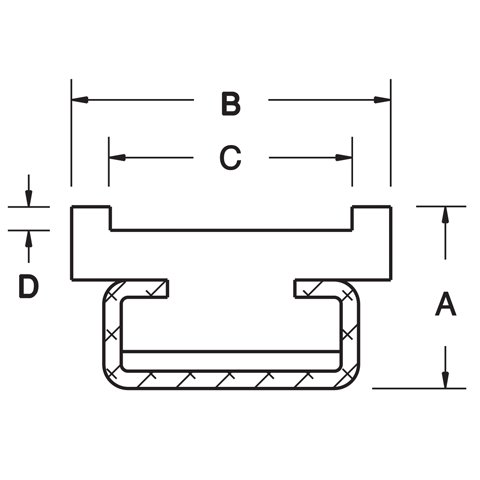

Flat Belt Guide Insert for Timing Belts — Mounted
- Mounted timing belt guide inserts combine a replaceable UHMW guide with a mounting channel configuration. Select the required pitch × width and material for your application.
- These inserts are useful for new conveyor builds and replacement applications where a mounted guide is required. Mounting channels are sold separately where indicated.
-

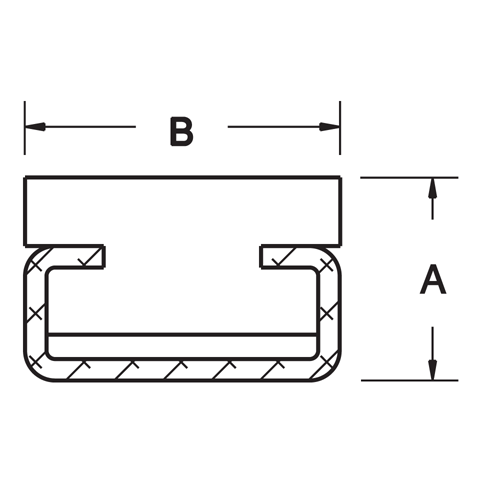

Insert for Belt Support or Guide Rail — Mounted
- These mounted inserts provide low-friction support for flat belts or guide rail applications.
- Select the product by the required A dimension and material.
Review the dimensional drawing and specifications to confirm compatibility with your equipment before adding the product to your quote.
Available Materials
Standard guides and inserts are offered in several UHMW material options:
-
UHMW: General-purpose, low-friction, wear-resistant material
-
Black Repro: Reprocessed UHMW for cost-conscious applications
-
Oil-Filled UHMW: Lower-friction material for higher-speed applications
-
Green Repro: Reprocessed UHMW in green
-
Static-Dissipative UHMW: Helps reduce static charge buildup
-
HT UHMW: High-temperature UHMW for elevated operating temperatures
Material properties vary. Choose the grade that best matches the speed, temperature, static-control, sanitation, and operating requirements of the application.
Benefits
- Helps support consistent belt tracking
- Low-friction surface helps reduce belt and guide wear
- Corrosion-resistant and self-lubricating
- Quieter and lighter than many metal components
- Available in plain and mounted configurations
- Multiple standard dimensions and material grades
- Easy to identify and request by SKU
Common Applications
Flat belt guides and inserts are used in:
- Packaging and automation equipment
- Food processing and packaging lines
- Beverage, bottling, and canning systems
- Pharmaceutical packaging equipment
- Conveyor and material handling systems
- Distribution and sortation equipment
Select your configuration below to add to quote
